    High Speed Dia 6mm Wire Mesh Bending Machine For 3D Fence Panel

    Ask Lasest Price
    Brand Name : FZ
    Model Number : DNW-33Q
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    High Speed Dia 6mm Wire Mesh Bending Machine For 3D Fence Panel

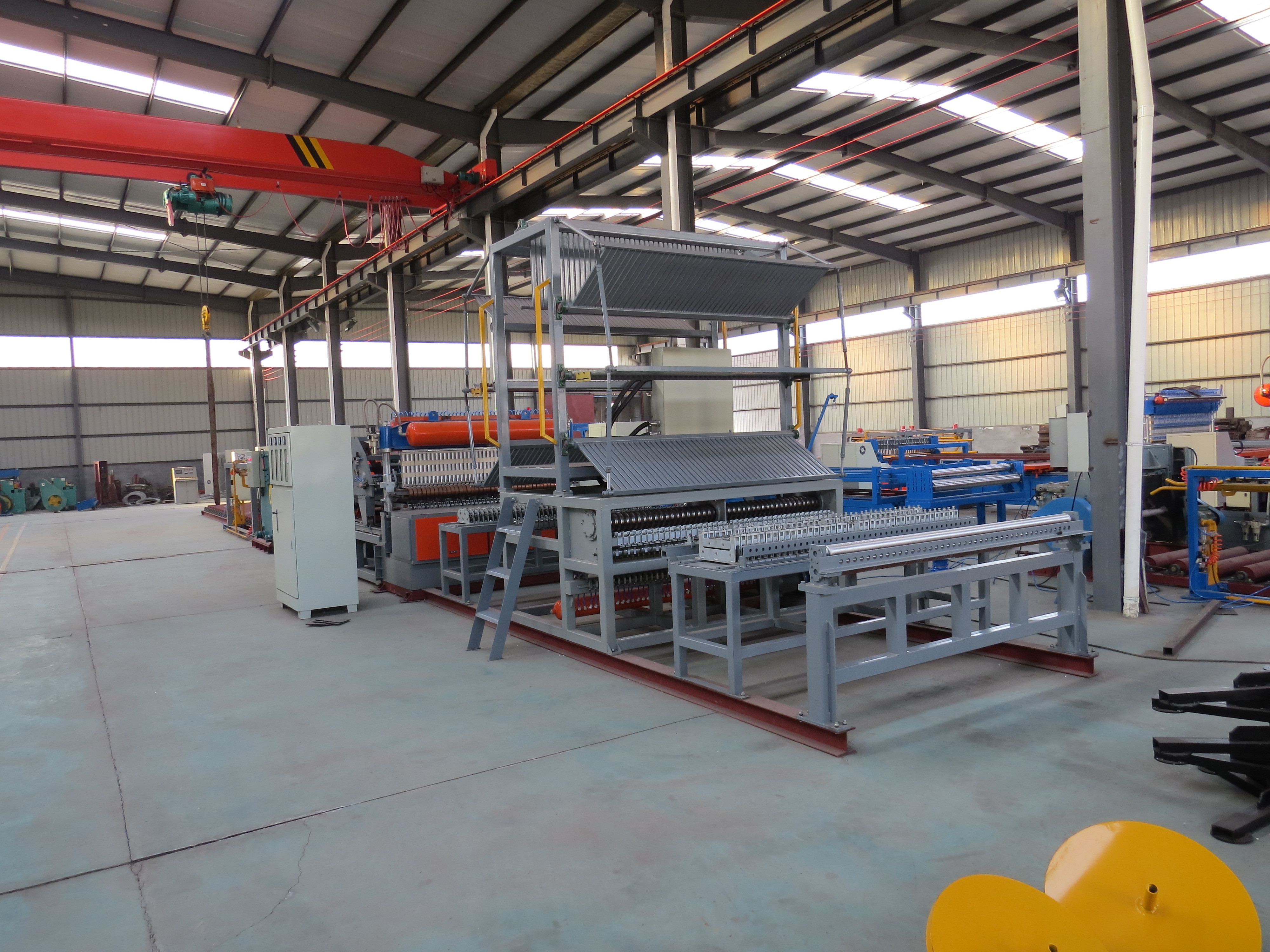

    High Speed 3D Fence Panel Wire Mesh Bending Machine


    If the machine is not used for a long time, it is necessary to cut off the main power supply, ensure safety, cut off the supply of gas and waterway, do rust-proof treatment to the machine, can apply antirust oil, remove dirt on the upper and lower electrode blocks, keep it clean, apply proper amount of lubricating oil to the mechanical transmission parts such as gears, sprockets, etc., blow off the dust of the fuselage and cover it with plastic film.


    Keep the machine storage place clean, no corrosive liquid, water, no dangerous goods storage.


    ItemProduct typeParameterRemark
    1Max. welding capacity¢ 6+6mm
    2Long wire diameter¢3-6mm
    3Cross wire diameter¢3-6mm
    4Long wire feeding methodIn pre-cut
    5Cross wire feeding methodIn pre-cut
    6Long wire spacing≥50mmMechanically adjustments
    7Cross wire spacing≥50mmProgramming adjustments
    8Length range of wire mesh≤3000mmAdjustable
    9Width range of wire mesh≤1300mmAdjustable
    10Number of welding spot16PCS
    11Working speed max.40-60times/min

    Our company can tailor-made various series of mesh welding equipments depending on different fields, including reinforcing mesh welding production line, autoclaved aerated panel mesh welding line, mine supporting mesh welding line, 3D oblique frame welding production line, fence mesh welding production line, shelf mesh welding production line, shelters mesh welding production line, storage cage mesh welding production line, mesh basket welding production line, pet cage mesh welding production line, protective shield mesh welding production line, trolley mesh welding production line, breeding mesh welding production line, high speed wire straightening & cutting machine and etc. Since the products has been launched into the market, we have obtained high praise from numerous customers because of its high automation, high stability, convenient operation and etc.
