380V 2-12mm Wire Straightener And Cutter PLC Control system

    Buy cheap 380V 2-12mm Wire Straightener And Cutter PLC Control system from wholesalers

    Buy cheap 380V 2-12mm Wire Straightener And Cutter PLC Control system from wholesalers
    • Buy cheap 380V 2-12mm Wire Straightener And Cutter PLC Control system from wholesalers

    380V 2-12mm Wire Straightener And Cutter PLC Control system

    Ask Lasest Price
    Brand Name : FZ
    Model Number : GT6
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

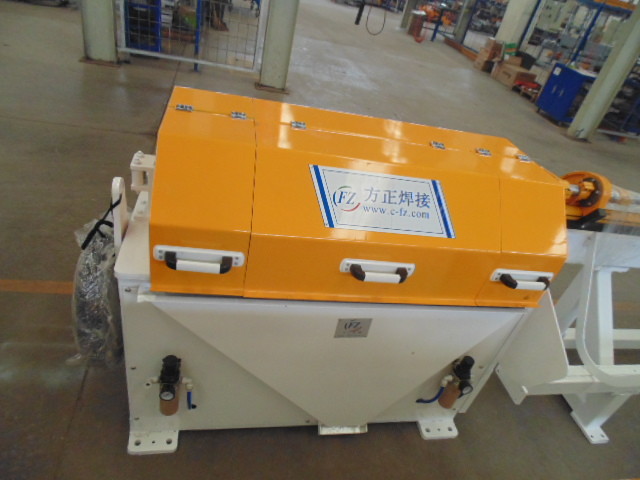

    380V 2-12mm Wire Straightener And Cutter PLC Control system

    2-12mm CNC Control Wire Straightening And Cutting Machine​


    If you have packaging requirements for the equipment, please contact our company in time. Attention should be paid to:


    Strong impact or drop should be avoided, otherwise it may cause component failure, product breakage, especially easily damaged precision instruments, instruments, electronic control devices and precision parts.


    Attention should be paid to water, rain and moisture. The top of the box shall be lined with two layers of petroleum asphalt felt or plastic film, the area shall be greater than the top area, the circumferential extension part shall not be less than 100 mm, and then it shall be nailed to the wall or frame with a pressure plate.


    The equipment shall be firmly cushioned, clamped and fixed in the shipping box to prevent movement or movement of the product during transportation.


    This product shall not be bare in the open air, the outside of the equipment should be wrapped in plastic film, stored in dry and dust-free, non-explosive corrosive gas, no strong shock vibration indoor. Storage should not exceed half a year.


    No.NameParameters
    1Wire diameter3.0-8.0mm
    2Straightening length500-6000mm
    3Cutting error±1mm
    4Straightening speed70-120m/min
    5Straightness2mm/m
    6MaterialCold drawn wire,Galvanized wire
    7Voltage fluctuation range±10%
    8Voltage380V 50HZ

    Notes to the Steel Wire Straightening And Cutting Machine:


    1 . The Steel Wire Straightening And Cutting Machine​ user must do the operation and maintenance in strict accordance with the equipment manual.
    2 . Prepare the site for
    Steel Wire Straightening And Cutting Machine installation must be according to the requirements
    3 . Supply power and gas according to the
    Steel Wire Straightening And Cutting Machine​ requirements.
    4 . Users are required to provide technical staff to assist in the installation, during installation, users need to install the
    Steel Wire Straightening And Cutting Machine provided free of charge auxiliary equipment.
    5 . The
    Steel Wire Straightening And Cutting Machine​ should be used in the workshop; the work environment will directly affect the performance and service life of the equipment.


    380V 2-12mm Wire Straightener And Cutter PLC Control system

    Quality 380V 2-12mm Wire Straightener And Cutter PLC Control system for sale
