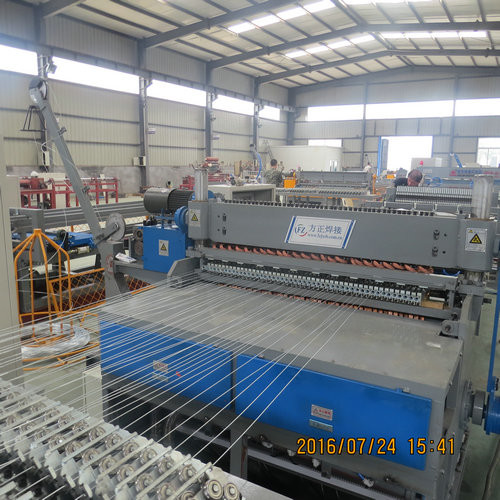

Chicken Breed Cage Multi Point Spot Welding Machine
The Chicken Breed Cage Multi Point Spot Welding Machine is equipped
with air filter and oil mist, which can greatly improve the service
life of pneumatic components.
The Chicken Breed Cage Multi Point Spot Welding Machine welding
electrode head of NC welding mesh machine in our company is made of
high quality chromium zirconium copper material, with long service
life and reduced production cost.
The whole operation for Chicken Breed Cage Multi Point Spot Welding
Machine only needs 1-2 people, greatly reduces the manpower cost.
Adopt PLC programming control, humanized operation interface, can
satisfy dozens of kinds of mesh production, fool type operation, no
matter what text background operator can control it calmly.
Each part of our company's Chicken Breed Cage Multi Point Spot
Welding Machine is equipped with automatic detection and alarm
system. When any part of the machine will automatically stop and
pop up the corresponding error information on the man-machine
dialogue interface of the main control system.
| No. | Name | Brand | Note |
| 1 | Servo motor and driver | DELTA | |
| 2 | Pneumatic component | STNC/ISAIAH | |
| 3 | Linear guideway | PMI | |
| 4 | PLC | DELTA | |
| 5 | Touch screen | DELTA | |
| 6 | Welding electrode | Chromium zirconium bronze | |
| 7 | Switch and button | SCHNEIDER | |
| 8 | Sensor | RUNAN | |
| 9 | Microcomputer controller | FANGZHENG | |
| 10 | Transformer | FANGZHENG | |
| 11 | Chain and cable | ECHU | |
This is the operating system of equipment, which likes the brain of
the whole line. Worker operates the equipment with this system. It
is necessary.
1) The equipment adopts PLC programming control, and with humanized
operation interface, which makes it easy to operate and master.
2) The adjustment of mesh specifications adopts LCD touch screen,
which makes it very easy to set all the production datum.
3) Both the operating system and numerical control servo system
adopt international known brands. ( they have the international
safety certification through testing and inspecting technically)
They can ensure that equipment can be steady, secure and sensible
to meet the welding requirement at a high speed.
4) Servo motor is controlled by pulse, which makes the grid error
reduce to 0.1mm
5) The guide adopts linear rails, used with servo control together,
which greatly improves accuracy of mesh.
