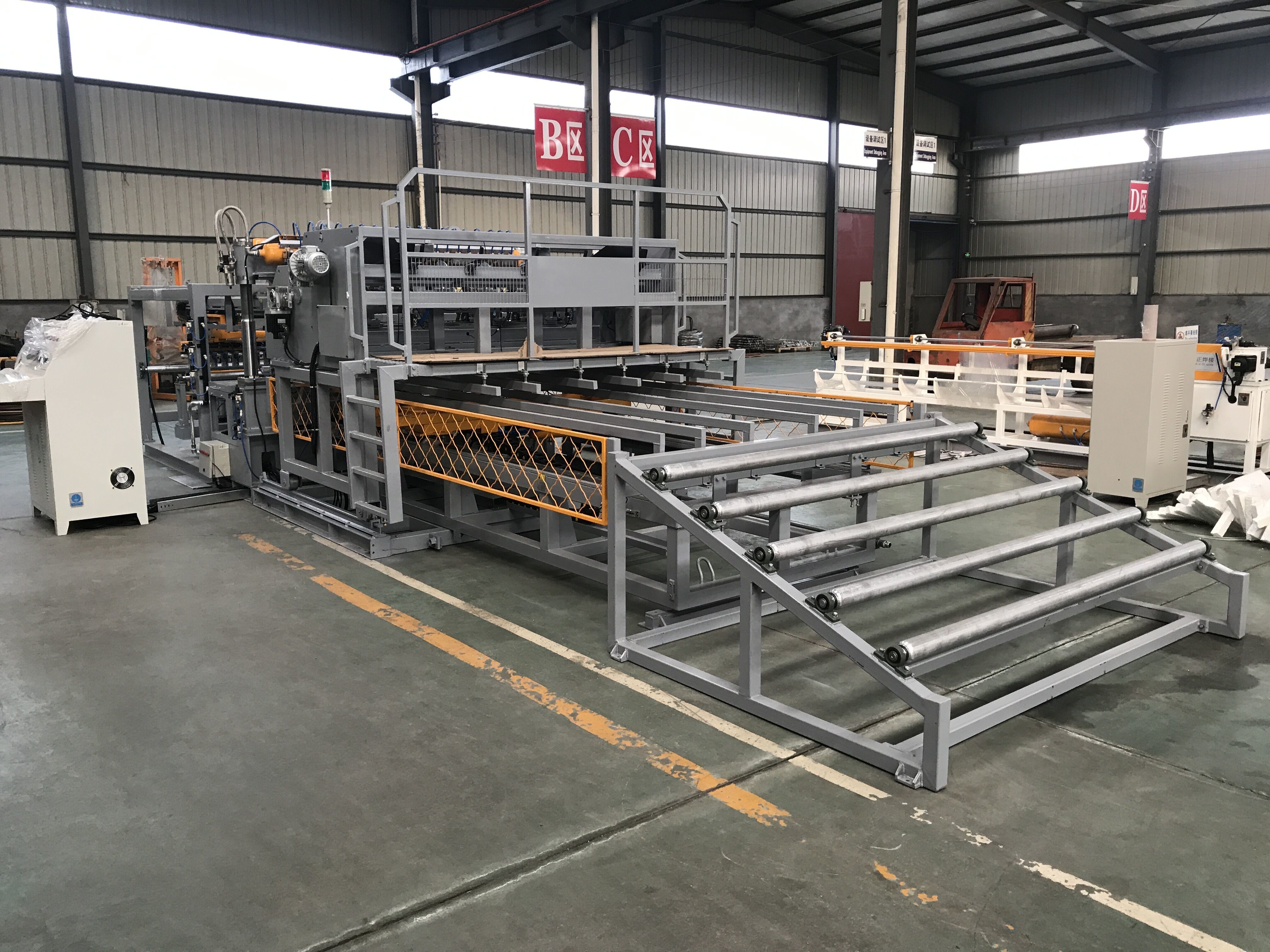

    Material Handling Products 220v Wire Mesh Welding Machine

    Ask Lasest Price
    Brand Name : FZ
    Model Number : DNW-13Q
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Material Handling Products 220v Wire Mesh Welding Machine

    Material Handling Products Wire Mesh Welding Machine


    After a period of use of the upper and lower electrodes, the trench canal will have different degrees of wear or electric corrosion. The degree of wear will be different according to the different material and filament diameter. When it is more serious, it will directly affect the quality of the welding point, resulting in false welding or leakage welding.Users must pay attention to timely maintenance and adjustment.When the upper and lower electrodes cannot be restored after long-term use, the electrodes should be replaced (chromium zirconium copper).


    All parts of the machine shall regularly remove oil from electrical appliances, circuits (e. g. transformer, circuit board, etc.) (dust shall be blown away with compressed air) to keep the contact of each switch contactor good.The insulation resistance of each 380V control line measured from 500V to 1000,000 V shall meet the requirements of the regulations.Measure the low voltage and signal lines with the 10K resistance gear of the multimeter, and the chassis housing should not have any leakage phenomenon.


    ItemNameQTYUnit
    1Welding machine1SET
    2Welding Control System1SET
    3Servo Control System1SET
    4Servo stepping device1SET
    5Cross Wire Auto-Feeding System1SET
    6Long wire loading frame1SET
    7Mesh traction platform1SET
    8Long wire feeding car device1SET
    9Automatically stacking device1SET
    10Mesh transportation car1SET
    11spare part case1PCS
    12Equipment operation and maintenance manual1COPY

    Material Handling Products Wire Mesh Welding Machine


    If the machine is not in use for a long period of time, the main power supply should be cut off to ensure safety, cut off the supply of air and water, do anti-rust treatment on the machine, apply anti-rust oil, remove dirt on the upper and lower electrode blocks, keep it clean, apply proper amount of lubricating oil on the mechanical transmission parts such as gears, sprockets, etc., blow off the dust of the fuselage and cover it with plastic film.


    Gas supply equipment or water pump should also do corresponding maintenance.


    Keep the machine storage place clean, non-corrosive liquid, water, no dangerous goods storage.


    Material Handling Products 220v Wire Mesh Welding Machine
